Analytical equipment

Measurement and analysis of particle size and shape of emulsions, dried samples and aerosols.

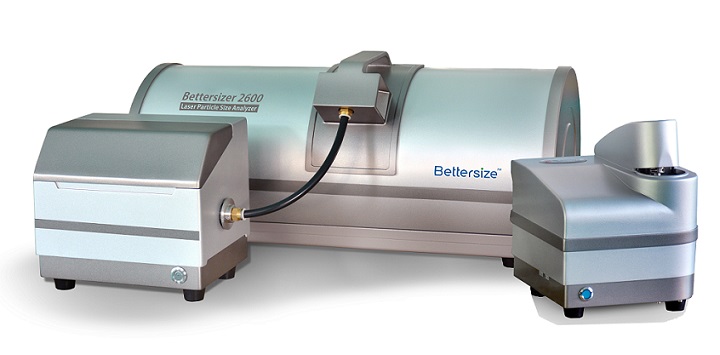

Analytical instrument for the determination particle size by use of laser diffraction Bettersizer 2600

- method: laser diffraction, wet and/or dry dispersion

- particle size: 0.02-2600 µm

- Fourier and Inverse Fourier optical system, Inclined sample cell

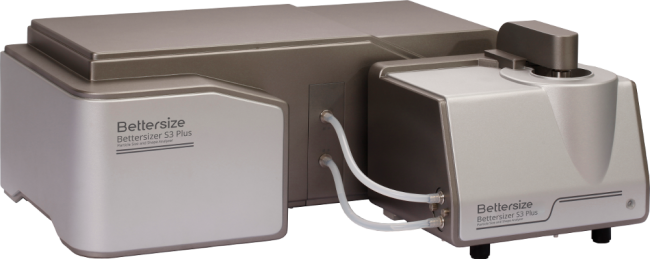

Analytical instruments for the determination particle size and shape by use of laser diffraction and dynamic image analysis Bettersizer S3Plus/S3

- method: laser diffraction with image analysis, wet dispersion

- particle size: 0.01-3500 µm

- DLOIS technology (dual lenses & oblique incidence optical system), Fourier and Inverse Fourier optical system, plus dynamic image analysis for shape results. Which gives a higher precision in measuring in the low range of the particle size

- buil-in CCD-high speed camera(s) - 0.5х in S3; 0.5x and 10х in S3Plus

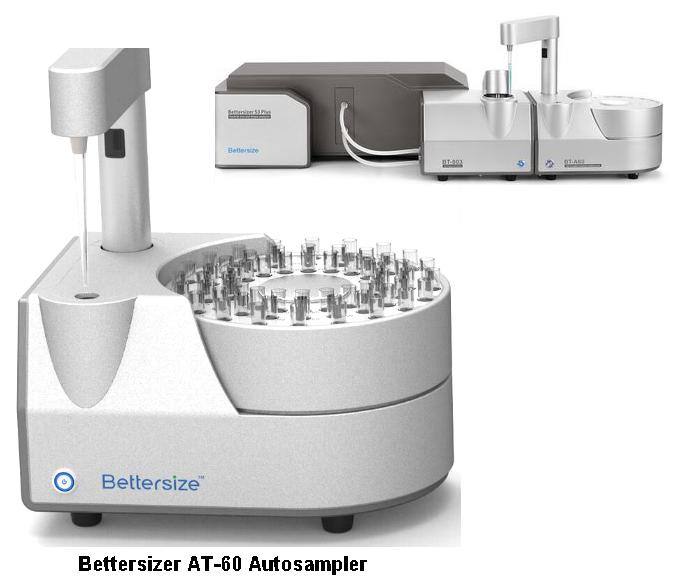

Autosampler for Betersizer S3Plus/S3

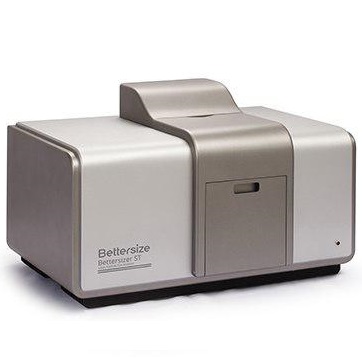

Analytical instruments for the determination particle size by use of laser diffraction Betersizer ST

- method: laser diffraction, wet dispersion

- particle size: 0.1-1000 µm

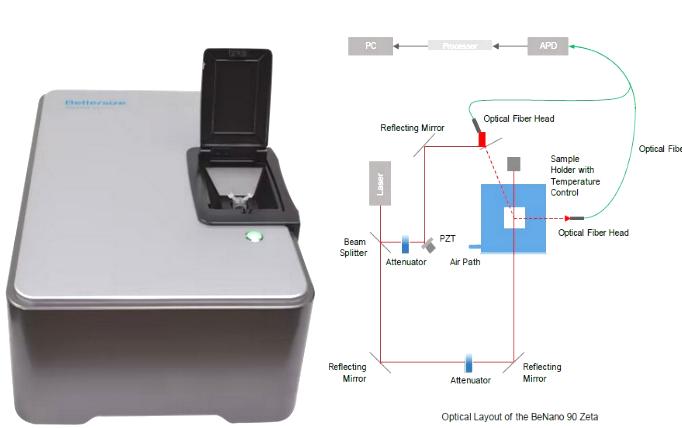

 Nanoparticle Size and Zeta Potential Analyzers  - seria BeNano:

Particle Size Measured by DLS Zeta
Potential Measured by ELS
Molecular Weight Measured by SLS

Equipment for determining the bulk characteristics of powders and granules

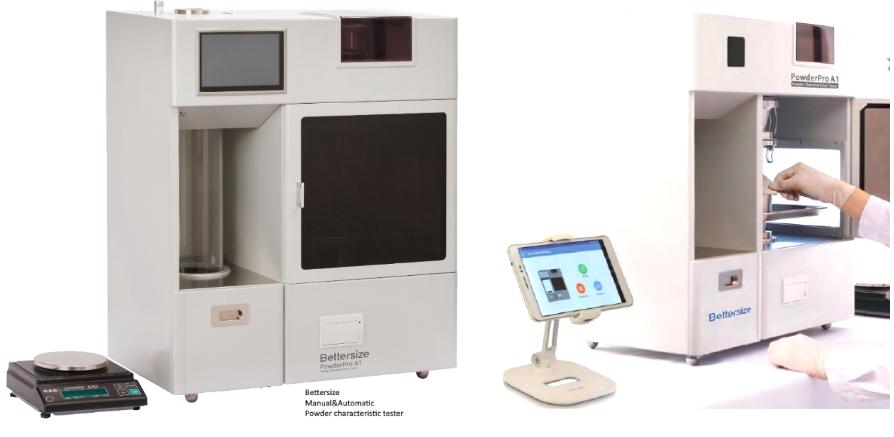

PowderPro M1/ A1 measures: • Angle of Repose and Fall • Angle of Spatula (Flat Plate Angle) • Bulk and Tapped Densities • Dispersibility • Voidage and Cohesion • Angle of Slide • Hall Flow Rate (customized) PowderPro M1 / A1 calculates: • Angle of Difference • Compressibility • Uniformity • Flowability Index • Floodability Index Conformity: • ASTM D6393-08/D6393-14 • ISO 3953: 1993 • USP32-NF27<616> • EP7.0 07/2010: 20934E

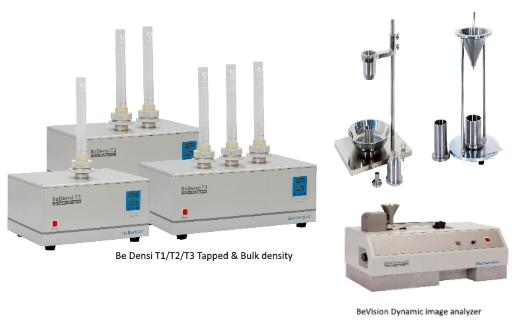

Серията BeDensi T (T1, T2, T3), измерва "tapped density" съгласно ISO3953: 1993 и United States Pharmacopeia for drug tapped density testing. BEDENSI B1-S, acc. ISO 3923/2. BEDENSI B1, съгл.  GB / T16913.3-1997- Part III: Determination of bulk density.

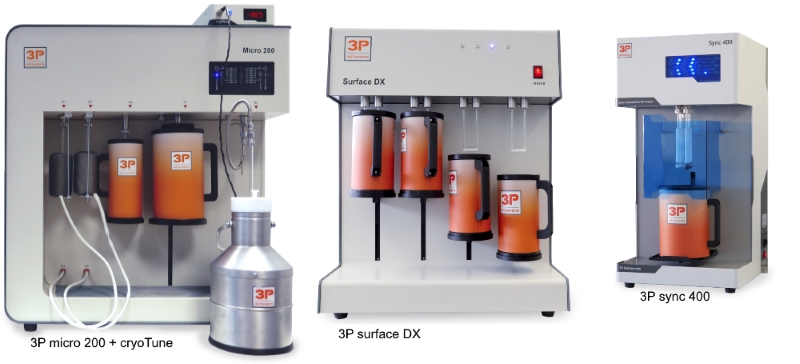

Analytical instruments for determination of BET-specific surface area, micro- and mesopore size & distribution

 For fully automated volumetric sorption analyzer for measuring adsorption and desorption of Nitrogen and other non-corrosive gases on three independent analysis stations simultaneously.

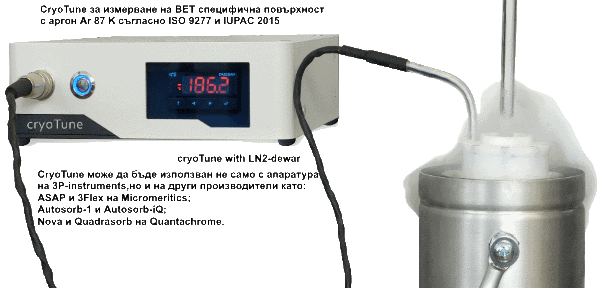

New: CryoTune for determination of BET-specific surface area with Ar 87 K according ISO 9277 and IUPAC 2015

CryoTune allows coolant adjustment to within 83–135 K for micropore analysis on different instruments of all manufacturers (not only with 3P instruments). Allows micropore and BET surface analysis according to IUPAC recommendations with Argon isotherms at 87 K.

3P-Instruments GmbH, Germany

For additional information: www.3p-instruments.com
